Eighteen production parts, drawn to the print.
Every part has a drawing, price breaks at 1, 10, 50 and 250, and a lead time. Prices hold until the quote, and the quote takes one business day.
- Cut
- 2 to 4 days
- Formed
- 3 to 6 days
- Machined
- 4 to 8 days
- Welded
- 4 to 8 days
BUSINESS DAYS FROM RELEASE / 18 OF 18 PHOTOGRAPHED, EVERY ONE DRAWN
L-bracket 90
4.00 × 3.00 × 2.00 IN / 3 MATERIALS
Z-bracket, 1.00 in offset
3.00 × 1.00 × 1.50 IN / 2 MATERIALS
Gusseted angle bracket
6.00 × 6.00 × 3.00 IN / 2 MATERIALS
Chassis enclosure
12.00 × 8.00 × 4.00 IN / 2 MATERIALS
Rack chassis, 2U
17.00 × 3.47 × 14.00 IN / 2 MATERIALS
Wall-mount enclosure, hinged door
16.00 H × 12.00 W × 6.00 D IN / 2 MATERIALS
Rack front panel, 4U
19.00 × 6.97 IN / 1 MATERIAL
Filler panel, 1U
19.00 × 1.72 IN / 1 MATERIAL
Control subplate
20.00 × 16.00 IN / 2 MATERIALS
Pipe flange, 6 in OD
OD 6.00 / BC 4.75 / 4 × Ø0.750 IN / 2 MATERIALS
Bearing block
3.00 × 2.00 × 1.50 IN / BORE Ø1.000 +0.001 / -0.000 IN / 2 MATERIALS

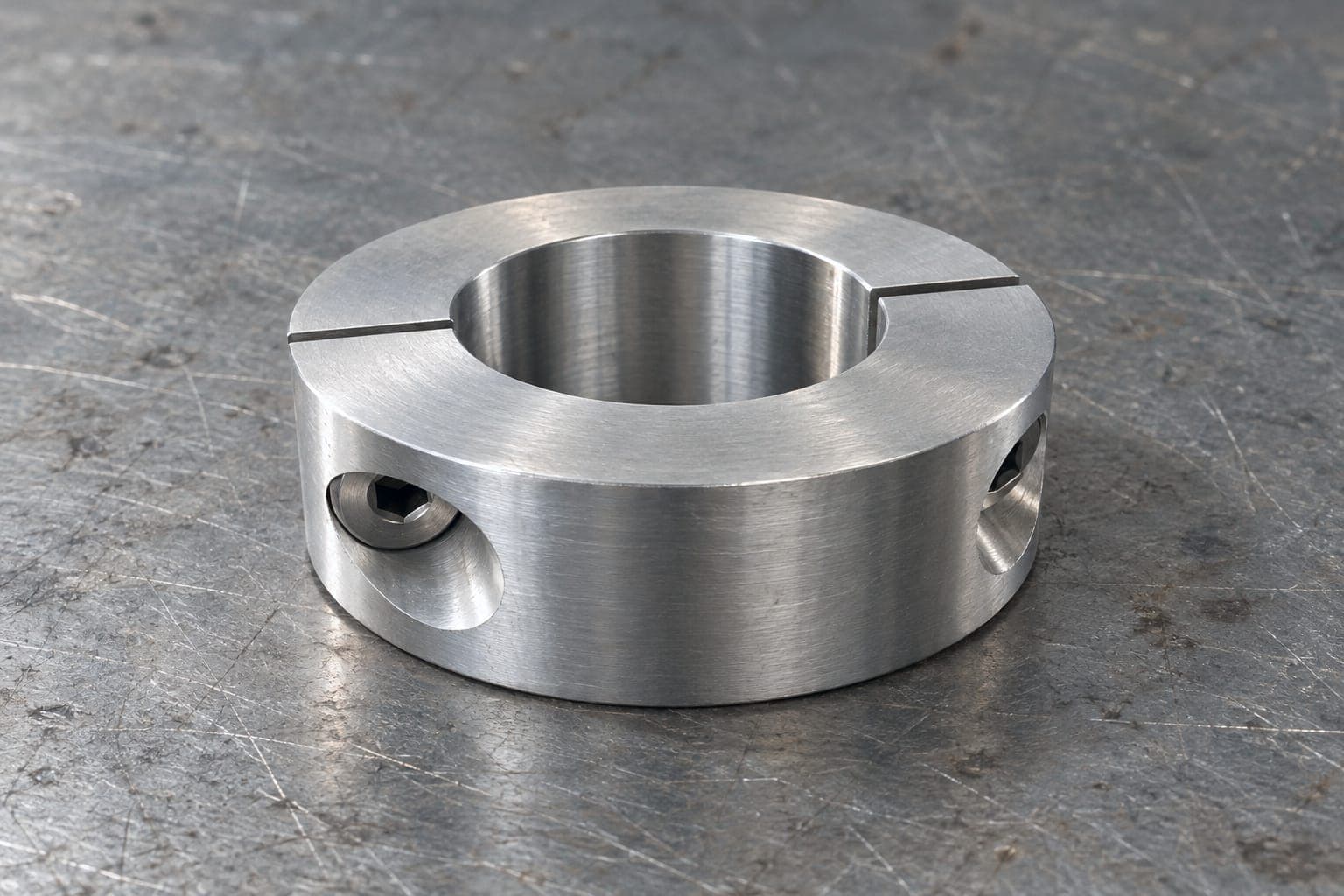

Two-piece shaft collar, 1 in bore
OD 1.75 IN / WIDTH 0.50 IN / BORE Ø1.000 IN / 2 MATERIALS

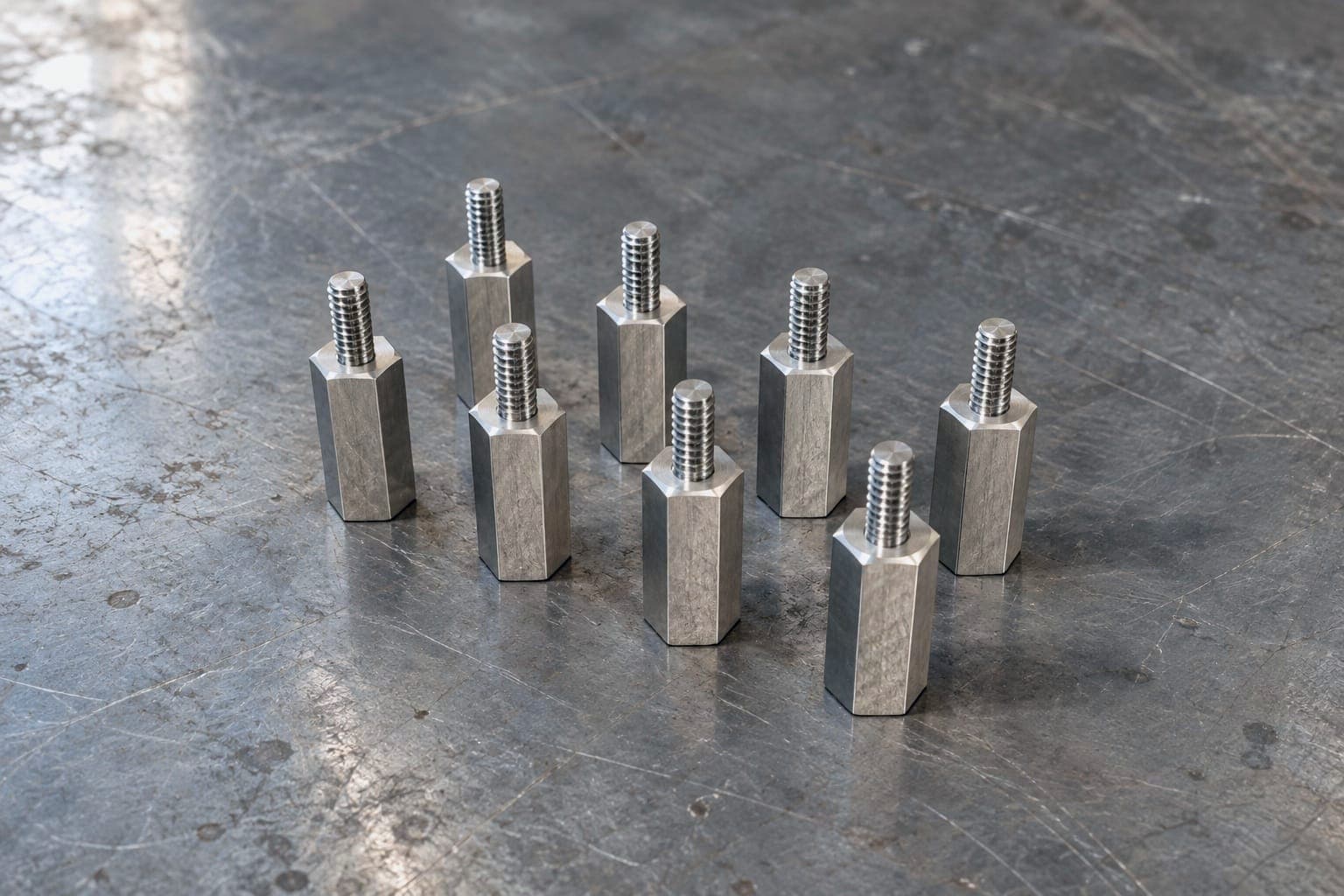

Standoff set, M3 × 12 (8 pcs)
M3 × 12 MM / 5.5 MM AF / 1 MATERIAL

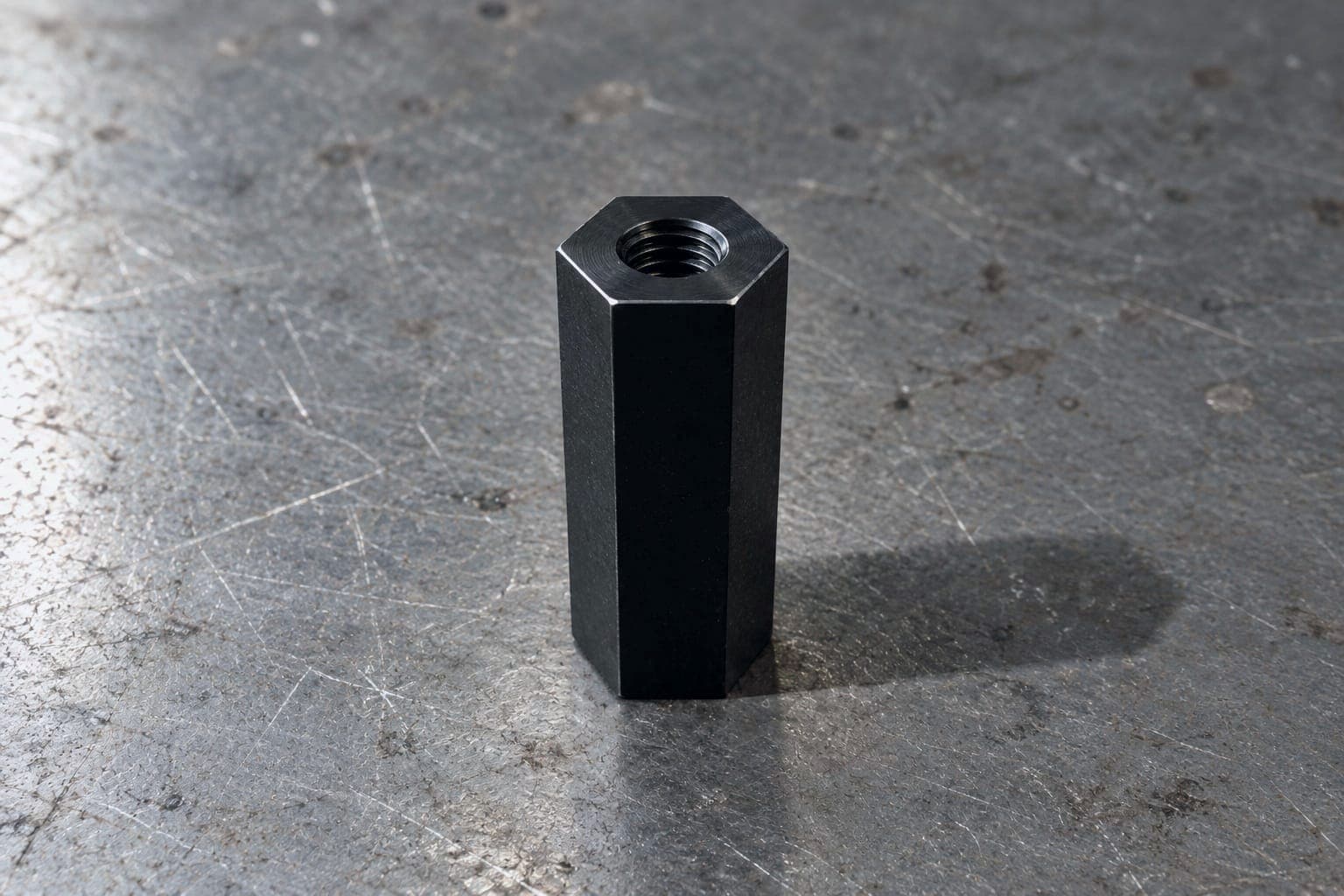

Hex spacer, 1/4‑20 × 1.00
1/4‑20 × 1.00 IN / 0.375 IN AF / 2 MATERIALS

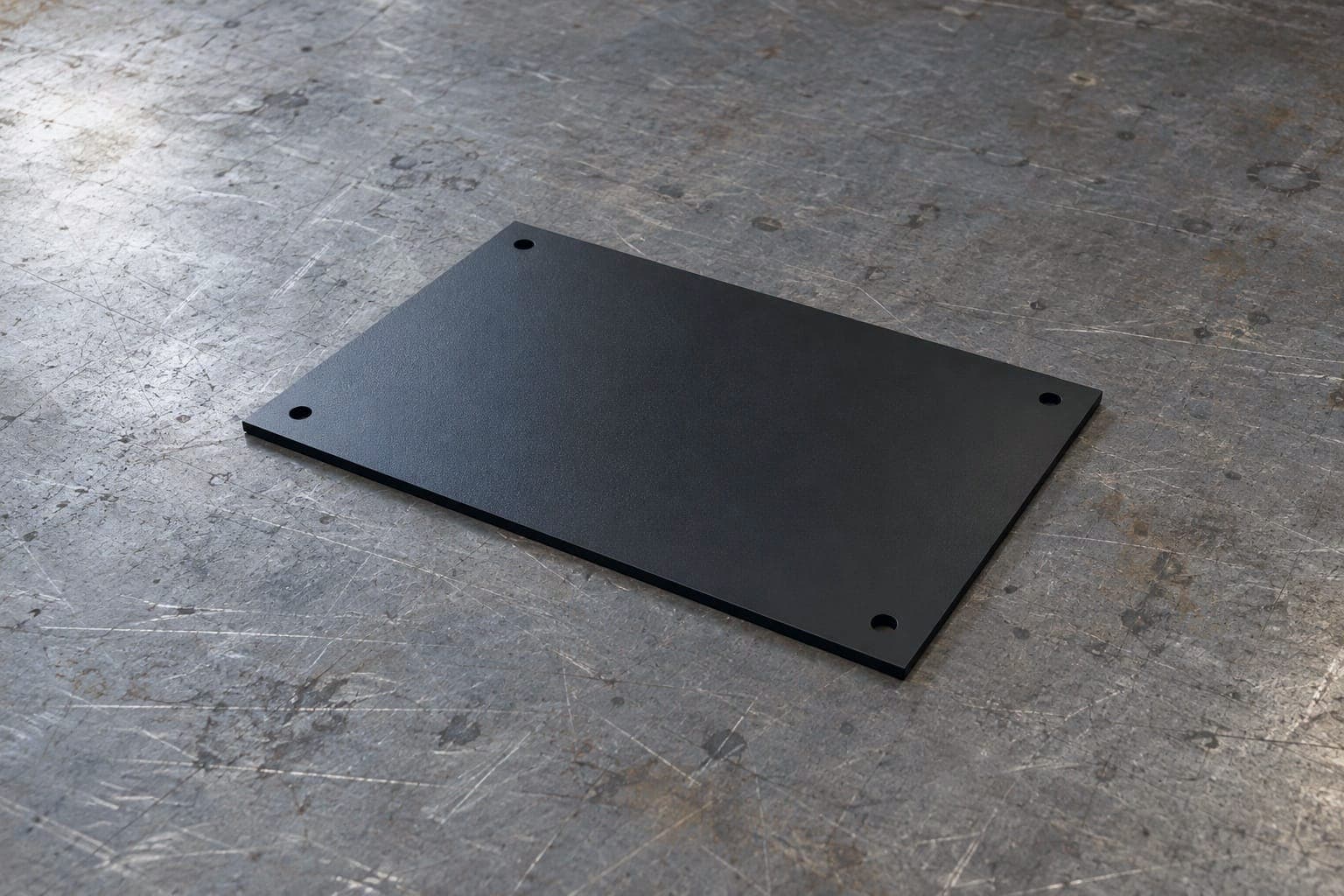

Machine base plate
18.00 × 12.00 IN / 1 MATERIAL

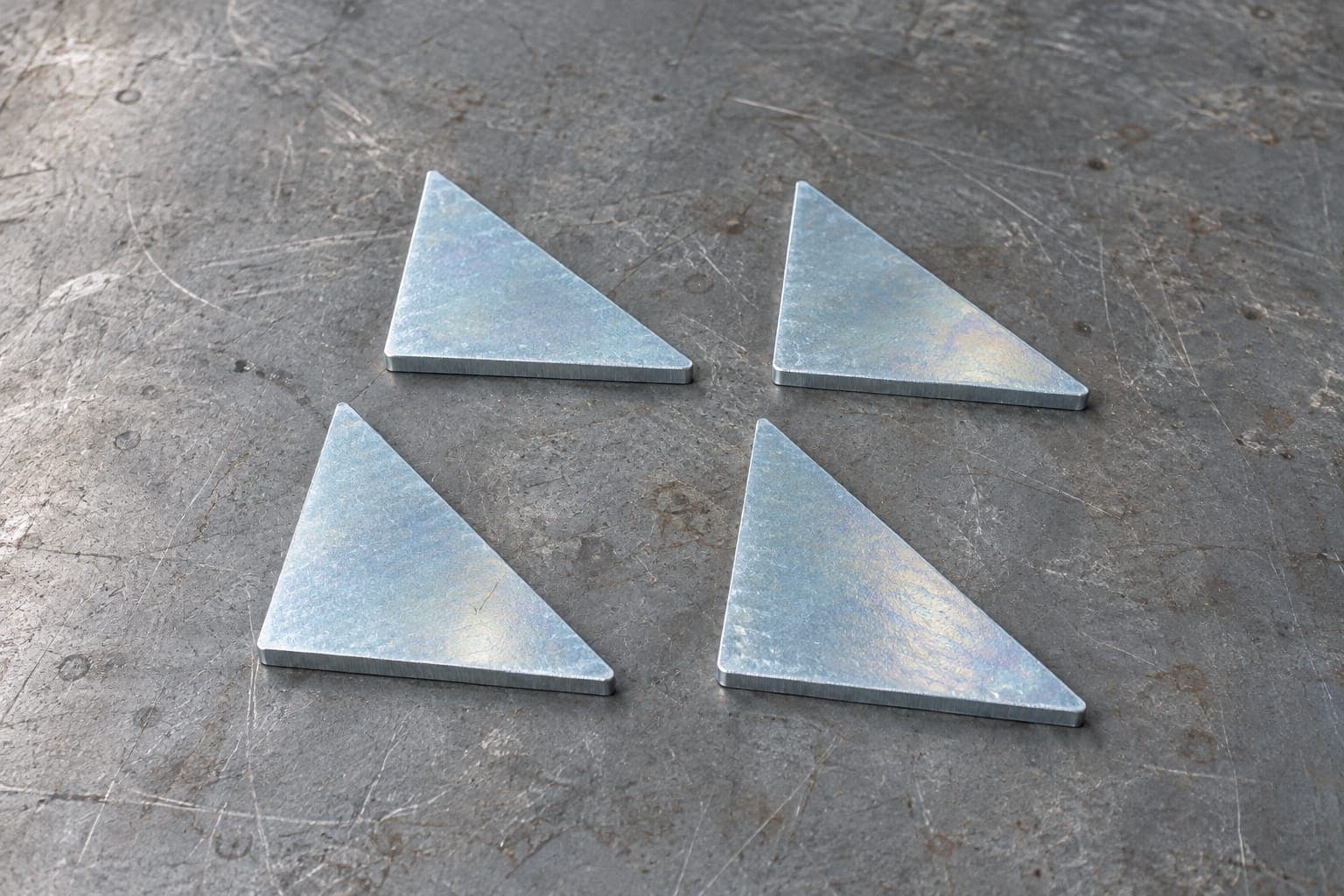

Gusset plate set (4 pcs)
4.00 × 4.00 IN TRIANGLE / 2 MATERIALS
Instrument cart shelf
24.00 × 18.00 IN / 1.50 IN LIP / 2 MATERIALS
Helm console bracket
8.00 × 5.00 × 4.00 IN / 1 MATERIAL
Can't find it? Most of our work is to your print.
A different hole, flange or finish belongs on the drawing. Add a custom line to the request and attach the revision, or price a bracket now in the configurator.
DRAWING IN BY 15:00 ET / A PRICED QUOTE THE NEXT BUSINESS DAY
