04.2INDUSTRY / MEDICAL DEVICES / WHAT SHIPS IN THE BOX

Stainless frames that arrive clean, passivated, with the lot cert.

Carts, shelves, enclosures and standoffs in 304 and 316, passivated or electropolished, packed in clean bags with no oil on finished parts.

DocumentMedical devicesAEROMARINEELEC

Material cert, per lotEvery orderEvery orderEvery orderEvery order

Certificate of conformanceEvery orderEvery orderEvery orderEvery order

First article reportNew parts, on requestEvery new part and every new revisionOn requestNew panel layouts

Dimensional reportEvery lot of welded shelvesWhen the PO asksOn requestOn request

Finish certEvery passivate and electropolish batchEvery partner finishEvery electropolish batchEvery anodize batch

Coating recordOn requestOn requestOn requestEvery powder batch

Weld recordOn requestOn requestOn requestOn request

Packing listEvery shipmentEvery shipmentEvery shipmentEvery shipment

EVERY ORDER WHEN IT APPLIES ON REQUEST

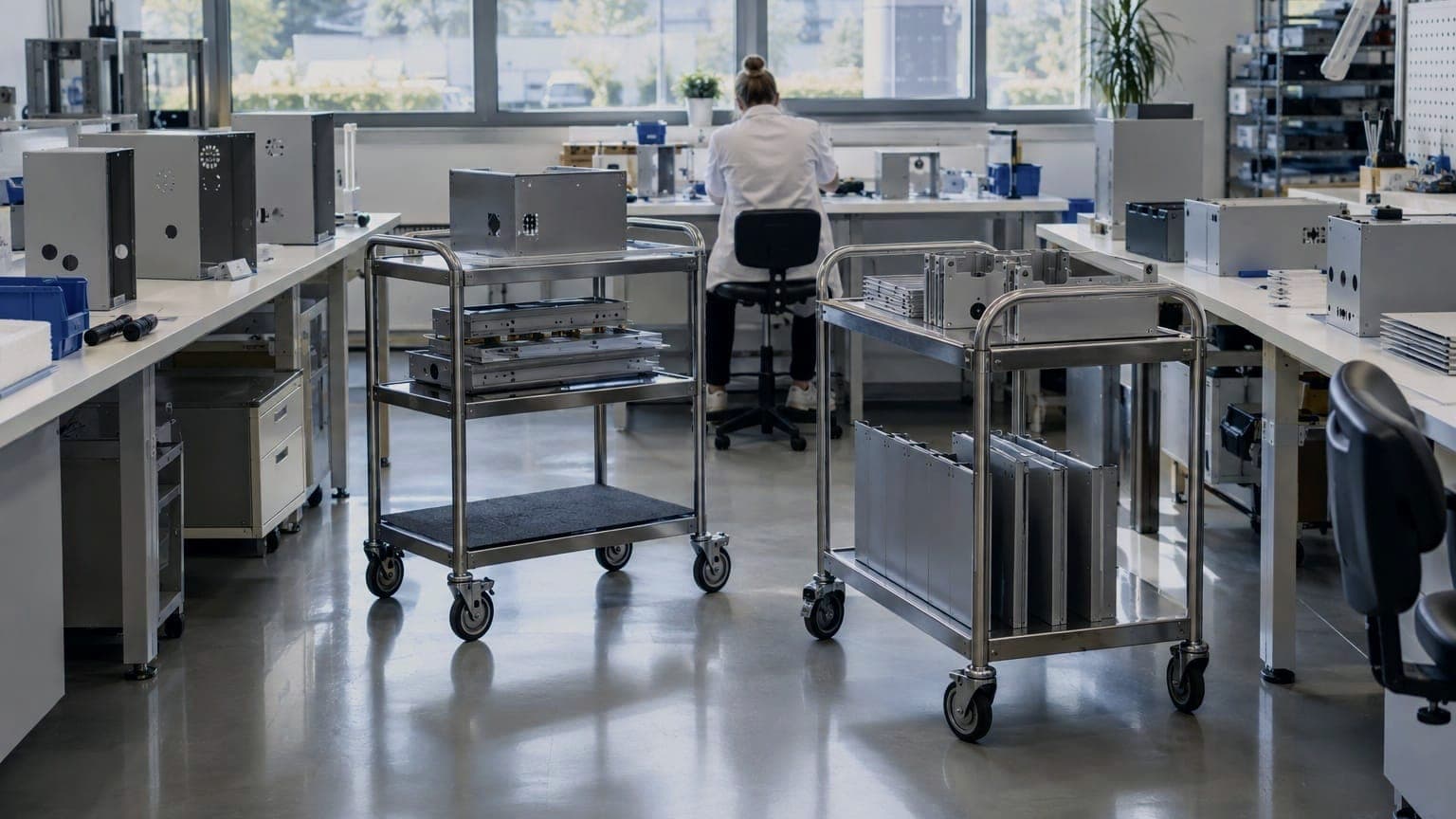

Two stainless carts with lipped shelves between the benches of a bright device assembly lab, a technician working at the far bench — FIG. 04.2 / A CART BUILT ON THREE FW-7101 SHELVES

LOT SIZE: 5 to 250
FORMED: ±0.010 in
LEAD: 6 to 14 days
FINISHES: Passivate, electropolish

What we make for medical-device buyers.

FW-7101 / REV C / WELDED / PHOTOGRAPHED

Instrument cart shelf

24.00 × 18.00 IN / 1.50 IN LIP / 2 MATERIALS

FROM $120.90 AT 250 / 14 DAYS

FW-2210 / REV C / FORMED / PHOTOGRAPHED

Chassis enclosure

12.00 × 8.00 × 4.00 IN / 2 MATERIALS

FROM $66.56 AT 250 / 11 DAYS

FW-2230 / REV C / WELDED / PHOTOGRAPHED

Wall-mount enclosure, hinged door

16.00 H × 12.00 W × 6.00 D IN / 2 MATERIALS

FROM $128.15 AT 250 / 15 DAYS

FW-5520 / REV C / MACHINED / PHOTOGRAPHED

Standoff set, M3 × 12 (8 pcs)

M3 × 12 MM / 5.5 MM AF / 1 MATERIAL

FROM $7.72 AT 250 / 12 DAYS

MATERIALS WE STOCK FOR YOU

On the rack, by grade.

The full stock table

Material	Thickness	Finishes
304 stainless	0.040 to 0.250 in sheet	Passivate, electropolish
316 stainless	0.063 and 0.125 in in stock	Electropolish
5052-H32 aluminum	0.063 in sheet	Powder, anodize
303 stainless	Bar to 2 in	Passivate

FW-7101 / CLOSEST CATALOG PART / REV C

CASE STUDY / MEDICAL DEVICES

Flat to 0.030 in over 24 in, after welding.

Weld heat bowed the shelves up to 0.090 in. They rocked on the cart frame, and straightening by hand scuffed the finish before passivation.

FLATNESS: 0.090 TO 0.030 IN
SCRAP: 8% TO 1%
CYCLE: 42 TO 31 MIN

Read the job

WHAT WE DON'T DO

So you don't have to ask.

We make frames, enclosures and fixtures. We do not make implants or anything that touches a patient.
We do not run a clean room. Parts ship clean-bagged with no oil on finished faces.
We do not do final device assembly or sterilization.

QUOTE DESK / MON TO FRI 07:00 TO 18:00 ET

Bring the medical-device requirements forward.

Mark the critical dimensions and the documents your receiving inspection needs before the job is priced. They stay with the traveler.

Send an RFQ Call the quote desk, 631 555 0148

DRAWING IN BY 15:00 ET / A PRICED QUOTE THE NEXT BUSINESS DAY

Call the desk Send a drawing
