Powder in house. Everything else on one PO.
Powder coat runs in a 10 × 8 × 6 ft booth with a 450 °F batch oven. Zinc plating, anodize, passivation and electropolish go to three Long Island finishers on our PO, and their certs come back in your box.
- 12
- 3
- +2 TO +4
- 10 × 8 × 6 ftFW-M15
- 450 °F batch ovencure logged by batch
- 12black, white, grays, RAL on request
- 2.0 to 4.0 milmeasured by sample on every batch
- Zinc, anodize, passivate, electropolishthree Long Island finishers, on our PO
- In your boxthe partner cert travels with the lot

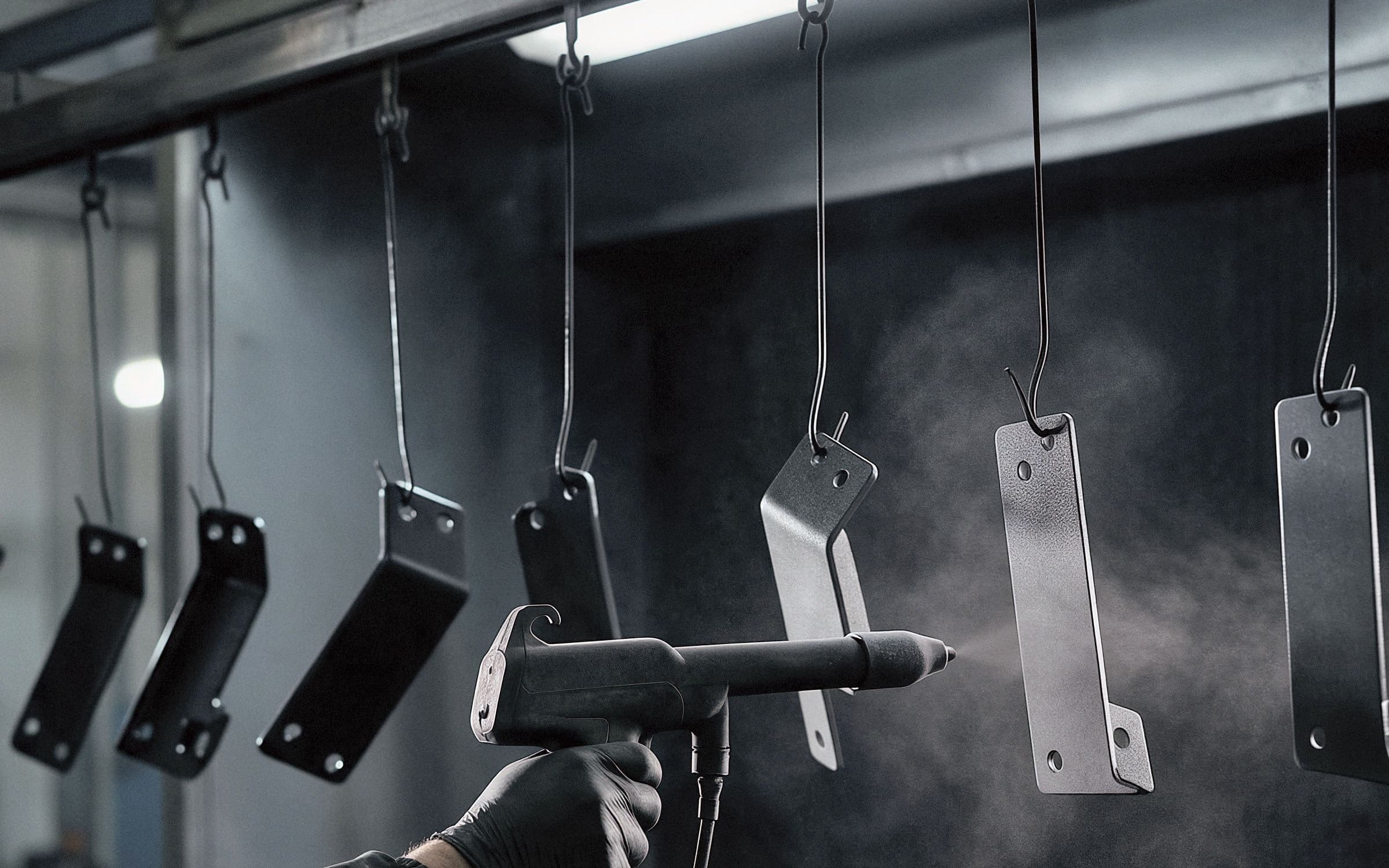

FIG. 02.5 / ELECTROSTATIC POWDER, FW-M15
Tolerances, without a callout.
Tighter is possible by quote. Put it on the print and the estimator prices the inspection it needs.
| Feature | Tolerance | Note |
|---|---|---|
| Powder film | 2.0 to 4.0 mil | recorded on the coating record |
| Anodize, clear or black | Type II, 0.0002 to 0.0004 in build | bores machined to allow for it |
| Masking | Per print | threads, ground points, mating faces |
| Color match in one order | One batch | panels in one order share a batch |
What runs on this line.
Outside these bars is a conversation, not a no. Call the quote desk with the grade and the thickness.
Check a material against every machineFinishing, step by step.
- Mask

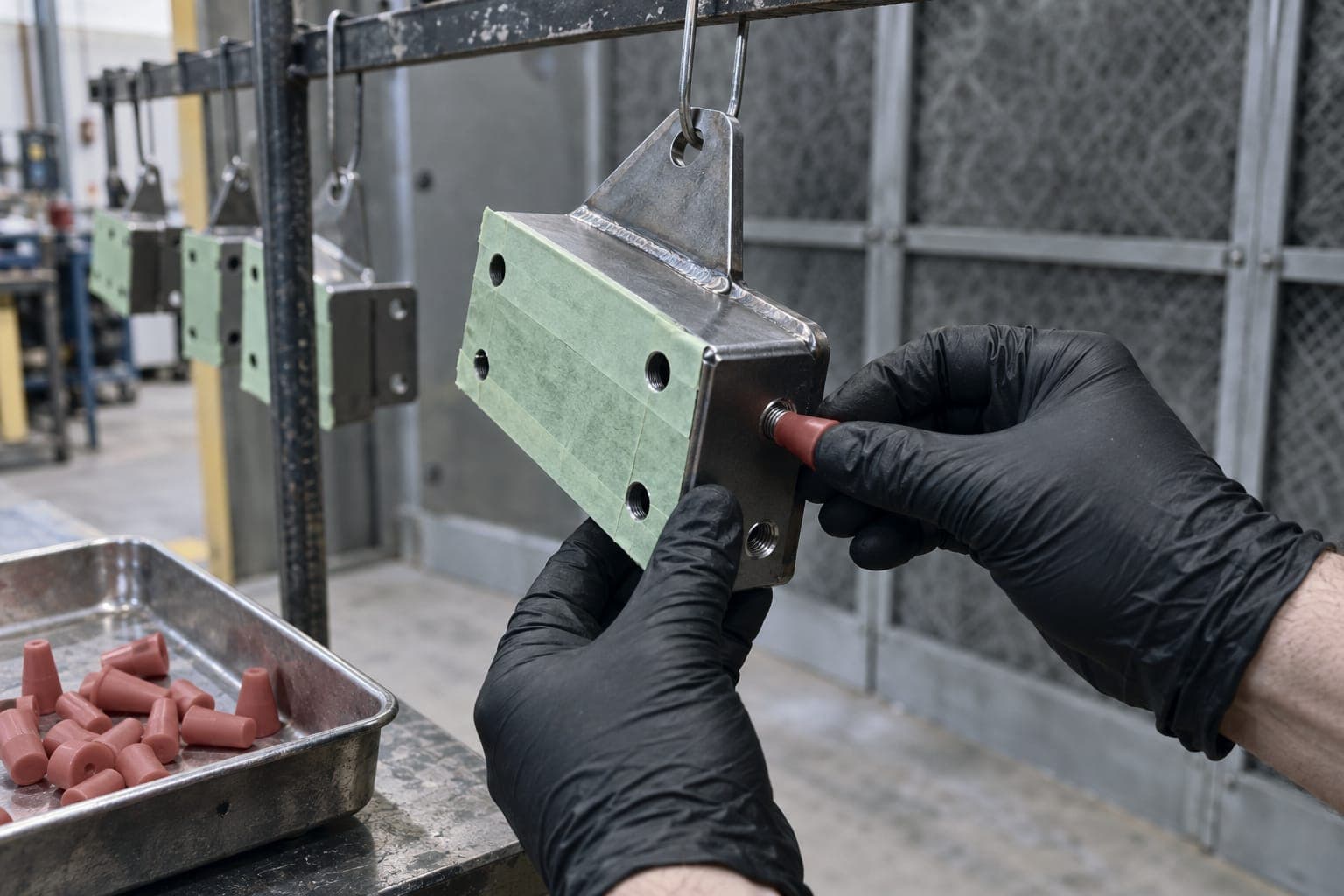

Threads, ground points and any face marked on the print are masked before the booth.
- Coat or ship out
Powder runs here. Plating and anodize go to a partner the same day the parts are ready.
- Record
Film thickness, cure time and temperature go on the coating record with the batch number.
The tags on your traveler.
Three changes that lower the price.
We mask once, before the booth, instead of stripping after.
One batch means one color and one setup charge.
The ship date already counts them; a late finish change moves it.
A finishing package we can price in a day.
- The finish spec in full: color and gloss, or the anodize type and color.
- Which faces, holes and threads stay bare.
- Ground points for electrical parts.
- Whether you need the partner cert in the box.
Parts made on this line.
Industries that run on it.
Send a part with its finish.
Name the finish and the masked faces on the print. One quote covers the part, the coating and the partner cert.
DRAWING IN BY 15:00 ET / A PRICED QUOTE THE NEXT BUSINESS DAY
