09.3MARINE / HELM SWITCH-PANEL BRACKET, FORMED AND WELDED, 0.090 IN / 40 A SEASON / SALT SPRAY, SOUTH SHORE

From 304 to 316 after one season.

The brackets were 304. After one season on boats moored on the South Shore they showed brown tea-staining at the welds and the bend lines.

MeasuredBeforeAfter
Staining after one seasonVisibleNone on the sampled brackets
Unit cost$54.10$63.80
Spec304316, electropolished

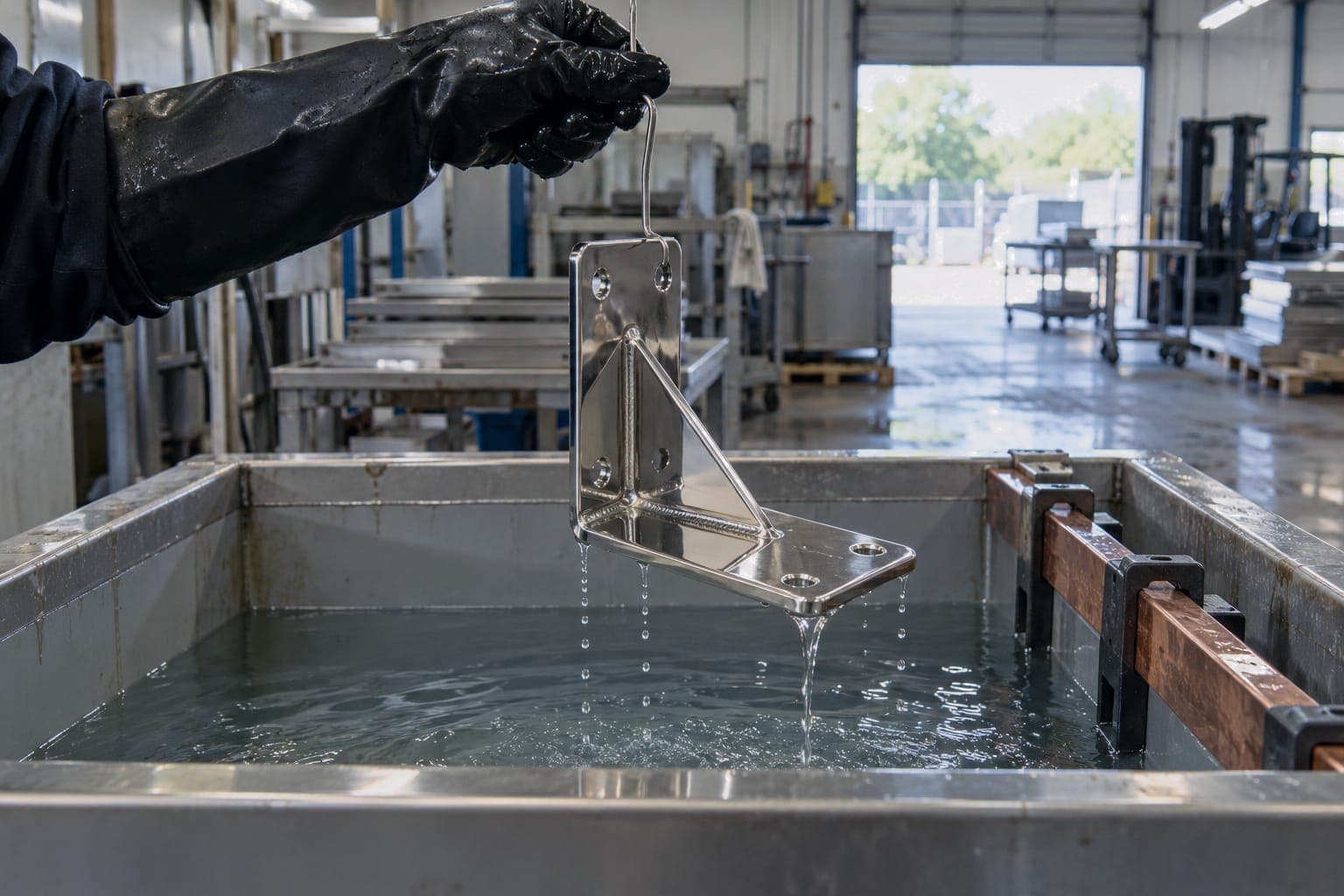

Welded 316 bracket lifted out of the electropolish tank on a hook, liquid running off it
FIG. 09.3 / 316, ELECTROPOLISHED AFTER WELDING

THE JOB

As it was quoted.

PART
helm switch-panel bracket, formed and welded, 0.090 in
QTY
40 a season
ENVIRONMENT
salt spray, South Shore

WHAT WE CHANGED

Three changes, each one on the traveler.

01

Switched the material to 316.

316MATERIAL
02

Electropolished after welding to remove the heat tint.

+4 DAYSLEAD
03

Nylon isolation washers where the bracket meets the aluminum console.

2WASHERS PER BRACKET

THE PART

Closest catalog part: FW-7310.

A welded 316 stainless bracket that holds a switch panel under a boat's helm console.

FW-7310 Helm console bracket
5.004.008.00FW / DIMENSIONS IN INCHESSCALE NTS / THIRD ANGLELEG A 8.00 / LEG B 5.00 / 4.00 WIDE / 3.00 GUSSET / 0.125 PLATE
FW-7310 / REV C / DRAWING
FW-7310 electropolished 316 helm bracket, the tall leg standing and a triangular gusset welded into the corner
FW-7310 / AS SHIPPED

QUOTE DESK / MON TO FRI 07:00 TO 18:00 ET

Send a similar RFQ.

Include the previous revision and highlight what changed. The estimator prices the change against the same acceptance dimensions.

Send a similar RFQCall the quote desk, 631 555 0148

DRAWING IN BY 15:00 ET / A PRICED QUOTE THE NEXT BUSINESS DAY
